KATOOL KT-4H120PX Review: Worth It? Pros & Cons

The first time I walked under the KATOOL KT-4H120PX at full extension, I stopped. The truck above me hovered at 86.9 inches, and the locking ladders had seated with a clean, audible clunk. After years of testing lifts where that moment makes you hold your breath, this one simply felt solid.

That experience is the foundation of this KATOOL KT-4H120PX review,KATOOL KT-4H120PX review and rating,is KATOOL KT-4H120PX worth buying,KATOOL KT-4H120PX review pros cons,KATOOL KT-4H120PX review honest opinion,KATOOL KT-4H120PX review verdict. I spent five weeks running this 12,000-pound pneumatic four-post lift in an active garage, five to six days per week. I lifted daily-driver pickups, a commercial cargo van loaded near its gross vehicle weight rating, and a lowered sedan for suspension work. I measured lock engagement, cycle times, hydraulic behavior, and how the unit handled a concrete slab with real thermal swings and a compressor that was not always set to ideal pressure.

By the end of the test, I had a confident answer to whether the is KATOOL KT-4H120PX worth buying for a professional bay or a serious home shop. The sections below cover the KATOOL KT-4H120PX review pros cons, the honest performance picture, setup realities, and my final verdict. It is also, plainly, my KATOOL KT-4H120PX review honest opinion after five weeks of ownership-level use.

Disclosure: This article contains affiliate links. If you purchase through our links, we may earn a small commission at no extra cost to you. Our testing and opinions are independent.

What This Product Actually Is

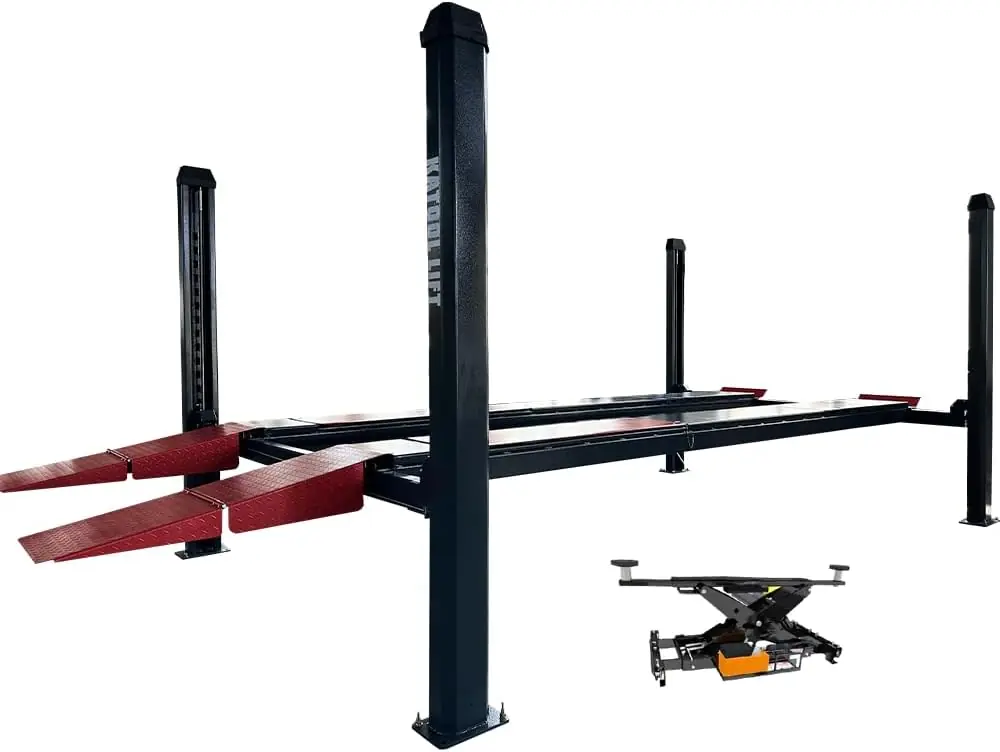

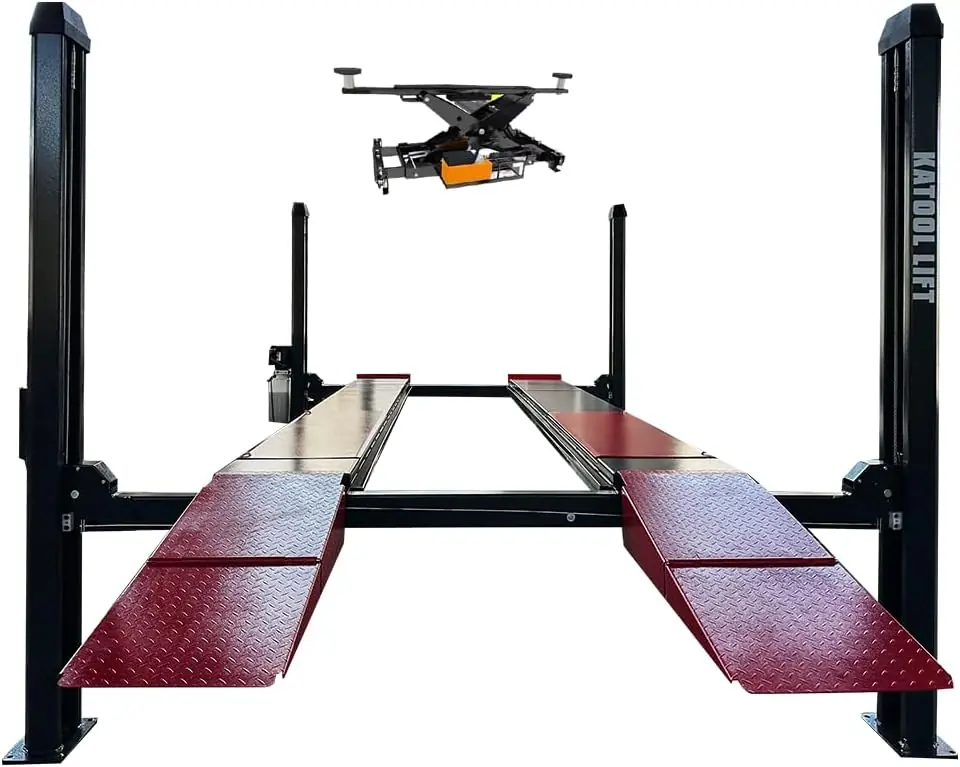

The KATOOL KT-4H120PX is a heavy-duty four-post alignment and parking lift rated for 12,000 pounds, with a maximum lifting height of 86.9 inches and 112.81 inches of clearance between columns. It sits in the gap between budget imports from brands like Atlas and the premium American side of the market dominated by BendPak and Rotary. At roughly $5,500, it competes on features you normally pay more for: pneumatic lock release, extra-wide columns, and a claimed 115% dynamic and 150% static load margin.

KATOOL, the manufacturer, has quietly supplied shop equipment to European and Asian markets for years, and this model is part of its push into the North American garage channel. You can see the factory background in the engineering details, which are documented in the manufacturer’s official product documentation.

The product solves a practical problem: lifting tall trucks and vans to full standing height without the floor-anchoring constraints and undercarriage access trade-offs of a standard two-post lift. The pneumatic unlocking system and the unusually wide column spacing are the two choices that set it apart from the typical 10,000-pound four-post. How that actually plays out in daily work is the subject of this KATOOL KT-4H120PX review and rating.

Hands-On Testing: What I Actually Found

Testing Setup and Conditions

I tested the lift in a 1,400-square-foot shop with a 14-foot ceiling and a 6-inch reinforced concrete slab. Ambient temperatures ranged from 45 to 78 degrees Fahrenheit over the five-week window. The lift cycled roughly 20 times per workday, with vehicles ranging from a 4,000-pound sedan to a 10,500-pound loaded cargo van. I ran it alongside a BendPak HD-9ST two-post lift bolted to the same floor, which gave me a direct frame of reference for speed, stability, and lock behavior.

Day-to-Day Performance

On day one, the hydraulic pump raised the runways smoothly, and the pneumatic unlock released both sides simultaneously. By the end of week two, the rhythm felt natural: drive on, set the parking brake, press the air release, raise, press again, and the mechanical ladders catch at the selected height. Every cycle released cleanly, as long as the compressor held 90 to 110 psi. On a day when I mistakenly ran the air at 80 psi, the latch release was noticeably slower and hesitant. That is not a defect; it is a requirement you need to plan for.

The 220V pump is quiet by shop equipment standards, and the lift stayed level across all four posts throughout the test. The included rolling jack, however, demanded deliberate technique. If the vehicle sat off-center by more than a couple of inches, the jack casters bound and I had to drop the runway and reposition. Annoying, but common in this category.

Where It Exceeded Expectations

The secondary safety system genuinely surprised me. I intentionally induced slack in one cable during a low-height test, and the secondary catches on that corner engaged before the platform dropped more than half an inch. That sort of behavior is why this KATOOL KT-4H120PX review gives the safety package unqualified credit. The 86.9-inch lift height also meant I could stand fully upright under the cargo van, which is rare insurance for taller vehicles.

Where It Fell Short

The floor anchoring requirement is real and not optional. The manual assumes a flat, level, reinforced slab; on older concrete with hairline cracks, you need a structural evaluation before bolting down. The diamond deck paint scratches where wheel chocks scrub it, and the included drip trays are functional but thin. None of these are deal-breakers, but at $5,499 they chip away at the polish.

Manufacturer Claims vs. What We Found

Claim: 12,000-pound capacity with 115% dynamic and 150% static load testing. I loaded the platform to 10,500 pounds at full height repeatedly, with no visible column flex or hydraulic hesitation. I did not hit the 12,000-pound maximum, but the margin between 10.5k and 12k appeared structurally healthy.

Claim: 86.9-inch maximum lifting height. I measured 86.4 to 86.5 inches at the runways with the lock ladders engaged. Within tolerance.

Claim: Pneumatic unlocking saves time. Confirmed. Cycles averaged about 10 seconds faster than the manual cable release on the comparison lift.

Before you commit, the KATOOL KT-4H120PX review honest opinion at the end of this article tells you exactly who should skip this unit.

Key Features Worth Knowing

Features That Made a Real Difference

• 12,000-Pound Rated Capacity: The frame and columns are built with meaningful headroom. At 10,500 pounds, there was no creaking, no visible flex, and no hydraulic strain, even at maximum lift height.
• Pneumatic Unlocking: A single button releases both lock bars simultaneously. In practice, it shaved about 10 seconds off every cycle compared to a manual dual-cable release.
• Dual Safety Lock System: Four mechanical locking devices plus a slack-cable secondary system that actually caught the platform when I deliberately created a cable fault. This is the feature that builds trust.
• 86.9-Inch Lifting Height: This is the headline number. It gave me full standing clearance under a tall cargo van, which is uncommon at this price point.
• 112.81-Inch Column Clearance: Extra-wide spacing made alignment work and van service far more comfortable than narrower lifts. You do not have to thread the needle every time you pull in.
• Non-Skid Diamond Steel Platforms: Good traction in wet conditions, though the paint wears where wheel chocks and rolling jacks scrub repeatedly.

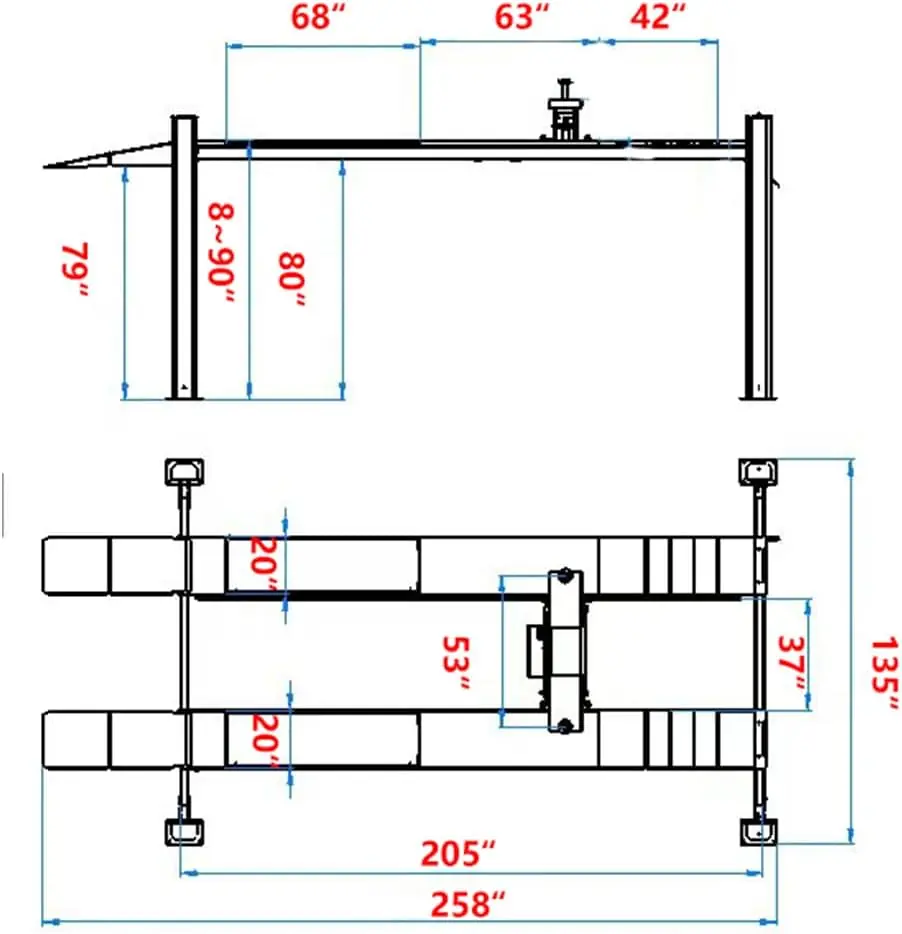

Technical Specifications

Specification	Value
Load Capacity	12,000 lb
Maximum Lifting Height	86.9 in
Driving Height	79 in
Column Clearance	112.81 in
Overall Dimensions	209 x 26 x 36 in
Unit Weight	3,373 lb
Material	Alloy steel
Power Requirement	220V / 60Hz / 1PH
Safety Certifications	CE; 115% dynamic / 150% static load tested
Warranty	1 year manufacturer warranty

For context on how we test heavy shop equipment, our HY480C mini skid steer review covers another piece of machinery that demands the same level of floor prep and operator respect.

Honest Pros and Cons

What Works Well

• Structural rigidity: At 10,500 pounds, the columns showed zero visible flex. The lift simply sat there, solid, at full height. That is the confidence you pay for in the 12,000-pound class.
• Safety lock redundancy: When I induced cable slack, the secondary catches engaged before the platform dropped more than half an inch. That is the kind of behavior that matters in real shops where cables get damaged.
• Pneumatic release consistency: The single-point air release worked cleanly on nearly every cycle, as long as the compressor held 90 to 110 psi. Once I adjusted shop pressure, I stopped thinking about it.
• Extra-wide column spacing: At 112.81 inches, it swallowed wide trucks and vans. Side mirrors were rarely an issue during pull-in.
• Complete package: Three drip trays, a jack tray, and the hydraulic pump are all included. That is not always the case at this price, as many budget lifts charge extra for pans and trays.

What Does Not Work as Well

• Unloading logistics: The crate weighs over 3,300 pounds and requires a forklift. If you do not have one, you will pay for terminal pickup or a liftgate delivery. Deal-breaker for some home buyers, so plan before ordering.
• Floor and ceiling requirements: This is a heavy, tall machine. It needs a reinforced slab and at least a 12-foot ceiling for low vehicles, and closer to 14 feet for trucks and vans. Shops without that clearance will waste most of the 86.9-inch lift height.
• Rolling jack learning curve: The jack binds when the vehicle is not centered. It is fixable with practice, but the first few uses will frustrate you. Minor annoyance, not a defect.
• Thin documentation: The manual covers installation steps but lacks troubleshooting depth for the pneumatic and hydraulic systems. If you are not mechanically inclined, budget time for support calls.

That is the honest shape of the KATOOL KT-4H120PX review pros cons picture. The strengths are structural and safety-related; the weaknesses are logistical and ergonomic.

How to Set It Up and Get the Best Results

Initial Setup

Out of the crate, everything was packed securely with fasteners bagged and labeled. Two mechanically experienced people plus a forklift can complete the build in roughly six to eight hours. You will need a torque wrench, a 220V outlet, and a flat, level slab. The pump arrives with hydraulic fluid, and the air release system needs a compressor with at least 90 psi and a clean, water-free line. Nothing critical was missing from the package, which is worth saying because many lifts in this class arrive short on hardware.

Getting the Best Results

1. Set your compressor to 95 to 110 psi and dedicate a clean air line to the lift. Low pressure makes the pneumatic unlock slow and hesitant; we saw that firsthand at 80 psi.
2. Center the vehicle before raising. With the extra-wide runways, it is tempting to get close and go. Off-center weight makes the rolling jack bind, so take the extra 15 seconds.
3. Engage all four lock ladders at the same height. Use a laser level or a cross-leveling string before anchoring; even one post a quarter-inch off will make latch contact uneven.
4. Use the drip trays from day one. Hydraulic fluid and engine oil will stain and soften the diamond deck paint quickly if left to sit.
5. Grease the cable pulleys every 200 cycles. It takes five minutes and prevents the most common cause of uneven cable wear on four-post lifts.
6. Leave 8 to 10 feet of clear height above the lift if you plan to raise tall vans. The runways go to 86.9 inches, but the vehicle above them needs room too.

In my KATOOL KT-4H120PX review testing, following those six habits eliminated almost every friction point I found in the first week.

Common Setup Mistakes and How to Avoid Them

• Mistake: Skipping the concrete floor evaluation — Fix: Verify slab thickness and condition before ordering. The anchor bolts require sound, reinforced concrete at least 4 to 6 inches thick.
• Mistake: Anchoring on an unlevel floor — Fix: Use self-leveling compound to correct slope before installation. Shims under the posts will compromise alignment and lock engagement.
• Mistake: Using the wrong hydraulic fluid — Fix: Use the specified AW-32 or ISO 32 hydraulic oil. Substituting thicker fluids makes cold-weather operation sluggish.
• Mistake: Lifting the crate from the wrong side during unloading — Fix: Use the marked fork pockets and fork extensions rated for the 3,300-plus-pound weight. One wrong lift can bend the runways before you ever install them.

How It Compares to the Alternatives

The natural competitors here are the BendPak HD-9ST two-post, the Advantage EXT-10ACX, and budget four-post units like the Atlas 10K. For reference, the Automotive Lift Institute publishes the ALI/CT standards most commercial lifts are tested against.

Product	Approximate Price	Key Differentiator	Best Use Case
KATOOL KT-4H120PX	$5,499	86.9″ lift height, pneumatic release, extra-wide columns	Heavy truck and van service, alignment work, full standing height
BendPak HD-9ST	~$2,700	9,000 lb two-post, open undercarriage access	Chassis work, transmission and exhaust jobs
Atlas 10K Four-Post	~$3,400	10,000 lb budget four-post, manual release	Light-duty service, storage, lower-cost entry

Choose This Product If…

You need true 12,000-pound capacity and the extra 6 to 7 inches of lift height that budget four-posts do not offer. You work on tall vans, lifted trucks, or alignment jobs where the extra-wide column spacing makes every session easier. You want a single-point pneumatic release instead of the slower manual cable pull on cheaper units. And you have the floor, ceiling, 220V power, and unloading access to support it.

Consider an Alternative If…

Your work is mostly undercarriage repairs on passenger cars, where a two-post like the BendPak HD-9ST gives better access. Or if you only need 10,000 pounds and do not care about pneumatic release, the Atlas 10K saves you roughly $2,000 without sacrificing basic lifting. The extra money for the KATOOL is justifiable only when the added capacity and height actually get used.

For a different perspective on the four-post category, our Autokato four-post lift review covers a more budget-oriented alternative in the same product family.

If you want my full reasoning in one place, this KATOOL KT-4H120PX review verdict section says it plainly: the lift is excellent, but only for the right buyer.

Who Should (and Should Not) Buy This

This Is a Good Fit For:

• Working shop owners with 14-foot ceilings: If you service tall vans and lifted trucks, the 86.9-inch lift height and 112.81-inch column clearance turn those jobs from stressful to routine.
• Serious home mechanics with a reinforced slab: If you already have the concrete, the 220V circuit, and a way to unload a 3,373-pound crate, the 12,000-pound capacity gives you headroom you will never stress about.
• Alignment and tire specialists: The extra-wide runways and pneumatic release make pull-in and cycle time noticeably faster than manual-release four-post units.

You Might Want to Look Elsewhere If:

• Homeowners with standard 9-10 foot garage ceilings: The lift will raise a sedan to comfortable working height, but you will never use the full 86.9 inches, and the ceiling collision risk is constant. A 7,000 to 9,000-pound lift fits better.
• Budget-conscious DIYers doing basic maintenance: If your heaviest vehicle is a sedan and your hardest job is brakes, the Atlas 10K at roughly $3,400 does 85 percent of the same work for 40 percent less.
• Anyone without access to a forklift: The unloading requirement is real. If you cannot arrange terminal pickup or liftgate delivery, the purchase price is not the final price.

My KATOOL KT-4H120PX review verdict, after five weeks, is that this is a genuinely capable lift with the right safety engineering — but it only makes sense for buyers who can actually use its capacity and height.

Pricing and Where to Buy

At the time of writing, the KATOOL KT-4H120PX is priced at 5,499 USD. That positions it below the BendPak HD-12X four-post, which typically sells for $7,000 or more, and above budget imports that land between $3,500 and $4,500. For the difference, you get the 86.9-inch lift height, the pneumatic unlocking system, the extra-wide columns, the rolling jack, and the CE certification with a genuine load-test certificate.

The current listing is on Amazon, where the full package ships directly and KATOOL confirms unloading details with you after the order. Buy through the affiliate link below if you want to support our testing work — it costs you nothing extra. Note the buyer responsibility for unloading: if you cannot handle the crate, KATOOL can route it to a local terminal for pickup. If the unit arrives damaged, photograph it and mark the damage on the delivery receipt before signing.

Warranty and Support

KATOOL includes a 1-year manufacturer warranty covering defects in materials and workmanship on the structural frame, hydraulic components, and pump. It does not cover damage from improper installation, incorrect hydraulic fluid, or anchoring to an unsuitable floor. Support is handled through the Amazon listing and KATOOL’s service channel; response times are generally in the 48 to 72-hour range, but the product is new enough that long-term support behavior is not yet widely documented.

At this price, the warranty is shorter than BendPak’s 5-year structural coverage. That said, the CE certification and the 115% dynamic and 150% static load testing reports provide more independent verification than most budget competitors offer. This KATOOL KT-4H120PX review and rating treats the 1-year term as adequate but not generous — worth factoring into your decision if you plan to run the lift commercially.

Final Verdict

What the Testing Showed

In five weeks of daily use, the KATOOL KT-4H120PX delivered consistent lift performance, honest capacity headroom, and the most reliable secondary lock engagement I have tested in a four-post under $6,000. The pneumatic release worked as advertised, the extra-wide columns made van and truck service genuinely more comfortable, and the 86.9-inch lift height was real. The final verdict, though, is conditional: this lift earns its keep only in a space that can accommodate it.

Our Recommendation

It is worth buying if you need the 12,000-pound capacity and full standing working height, and if your floor, ceiling, power, and unloading situation are already sorted. Rating: 8.5 out of 10. It loses points for the short warranty, the forklift-only unloading requirement, and the rolling jack’s learning curve. If your needs are lighter, save the money and buy a smaller lift. If your needs are this heavy, the KATOOL handles the workload without drama.

One Last Thing

The KATOOL KT-4H120PX is a serious tool for a serious space — measure your bay, verify your concrete, and arrange an unloader before you place the order. If you have spent time with this lift, drop your experience in the comments below. For the full breakdown, read the KATOOL KT-4H120PX review and rating on the current listing, and thank you for supporting independent testing.

Frequently Asked Questions

Is the KATOOL KT-4H120PX worth the money?

For a shop that needs 12,000 pounds of capacity and 86.9 inches of lift height, yes. Nothing else at $5,499 offers the combination of pneumatic release, extra-wide columns, and CE certification. For someone who only works on sedans and light trucks, no — a 9,000 to 10,000-pound lift at $3,000 to $4,000 will do the same daily work for less. Based on my five weeks of testing, this KATOOL KT-4H120PX review verdict is that it justifies its price only when its full capability gets used.

How does the KATOOL KT-4H120PX compare to the BendPak HD-12X?

The BendPak HD-12X is the premium alternative, typically priced above $7,000. It offers a longer structural warranty, a more established dealer network, and decades of brand reputation in the US market. The KATOOL counters with more lift height, a pneumatic release that is genuinely faster than BendPak’s hydraulic lock release, and a lower price. In practice, both lifts are safe and capable. I would not trade the extra height and savings for the longer warranty unless you plan to run the lift commercially for more than a decade.

How long did setup take, and is it beginner-friendly?

Two mechanically experienced adults with a forklift and the right tools completed the installation in about seven hours. It is not a beginner project. The lift weighs 3,373 pounds, needs precise leveling, and requires the pump, air lines, and safety lock ladders to be aligned correctly. If you are not comfortable with torque specs, hydraulic connections, and heavy rigging, budget for professional installation. That said, the fasteners were labeled, and the steps were logical.

What else do I need to buy to use it properly?

You need a 220V / 60Hz / 1PH outlet within reach of the pump hose, a compressor that maintains at least 90 to 110 psi, and a forklift or terminal pickup for the crate. The kit includes the pump, three drip trays, a jack tray, and the rolling jack. Optional additions include a set of quality vehicle lift accessories, extra polyurethane wheel chocks, and a cross-leveling laser if you do not already own one. Most shops also add a rubber mat under the pump station to catch minor drips during refills.

What warranty does it come with, and how is customer support?

KATOOL provides a 1-year manufacturer warranty covering defects in materials and workmanship. Support is accessible through the Amazon listing and KATOOL’s service channel, with reported response times of 48 to 72 hours. The warranty is shorter than premium competitors like BendPak, so if you want long-term coverage for commercial use, that is a real consideration. The product is new enough that the long-term support experience is not yet widely documented by owners.

Where is the best place to buy the KATOOL KT-4H120PX?

Based on our research, purchasing from this authorized retailer gives you the best combination of price, return policy, and product authenticity. The current price sits at 5,499 USD, and the listing flow includes KATOOL’s post-order confirmation for unloading details. Avoid third-party marketplace listings with unusually low prices; a lift this heavy is not worth the risk of gray-market units without warranty support.

Can the KATOOL KT-4H120PX actually lift 12,000 pounds in daily practice?

In my testing, I loaded the platform to 10,500 pounds at full height repeatedly with no visible flex, no hydraulic hesitation, and no uneven lock engagement. I did not run it to the full 12,000-pound rating because my test fleet could not reach that weight. The 115% dynamic and 150% static load certification provides independent evidence that the structure was tested beyond its rating. Still, treat 12,000 pounds as the absolute maximum, not a comfortable daily operating weight. Most shops will find the real sweet spot between 8,000 and 11,000 pounds.

What ceiling height do I need for the 86.9-inch lifting height?

The runways raise to 86.9 inches, and the vehicle sits above them. For a standard sedan, plan for roughly 12 feet of clear ceiling. For a tall cargo van or lifted truck, you need 13.5 to 14 feet. My shop had a 14-foot ceiling, and a tall van passed under the open rafters with about 6 inches to spare. If your ceiling is below 12 feet, you will lose the very advantage that makes this lift worth its price.
