xTool MetalFab Review 2025: Is It Worth Buying?

You have a repair shop, a custom fabrication side hustle, or you are tired of sending out welding jobs because your TIG setup takes forever and your cuts look like a beaver chewed through them. The promise of a single machine that welds, cuts, cleans rust, and engraves sounds like science fiction. I bought the xTool MetalFab 1200W 4-in-1 system to see if it delivers on those four claims or if it is a jack of all trades, master of none. After four weeks of pushing it through carbon steel, stainless, aluminum, and some seriously rusty flat bar, I am ready to share my xtool metalfab review,xtool metalfab review and rating,is xtool metalfab worth buying,xtool metalfab review pros cons,xtool metalfab review honest opinion,xtool metalfab review verdict. This is not a spec sheet rehash. This is what happens when you actually use the thing.

This review covers the welding, cutting, cleaning, and engraving performance, the setup pain points, the hidden costs, and who should actually buy one. If you are considering a xtool metalfab review and rating to decide, I have you covered. For context on how this compares to other workshop tools I have tested, check out our modular container shop review for a different approach to workspace optimization.

What Is xTool MetalFab and Who Makes It?

The xTool MetalFab is a 1200W fiber laser system that combines four functions in one unit: handheld laser welding, CNC laser cutting, laser cleaning (rust and paint removal), and laser engraving on non-reflective metals. It is manufactured by Makeblock Co., Ltd, a Chinese company that has built a strong reputation through its xTool line of desktop laser engravers and cutters. Makeblock is not a newcomer — they have sold over 500,000 units across their laser product range and are the number one bestselling laser brand on Amazon. The MetalFab sits at the premium end of their catalog, aimed at professional workshops and serious fabricators rather than weekend warriors. I selected it for review because the “4-in-1” claim is bold, and the 1200W fiber laser is a significant jump from the diode lasers most hobbyists are used to. If you are researching is xtool metalfab worth buying, the answer depends heavily on how many of these four functions you actually need.

Unboxing and First Impressions

The box is enormous and weighs 330 pounds. You will need a dolly and at least one strong friend to move it. Inside, the packaging is dense foam with everything snugly fitted. No damage during shipping, which is a relief for a 16,000-dollar machine.

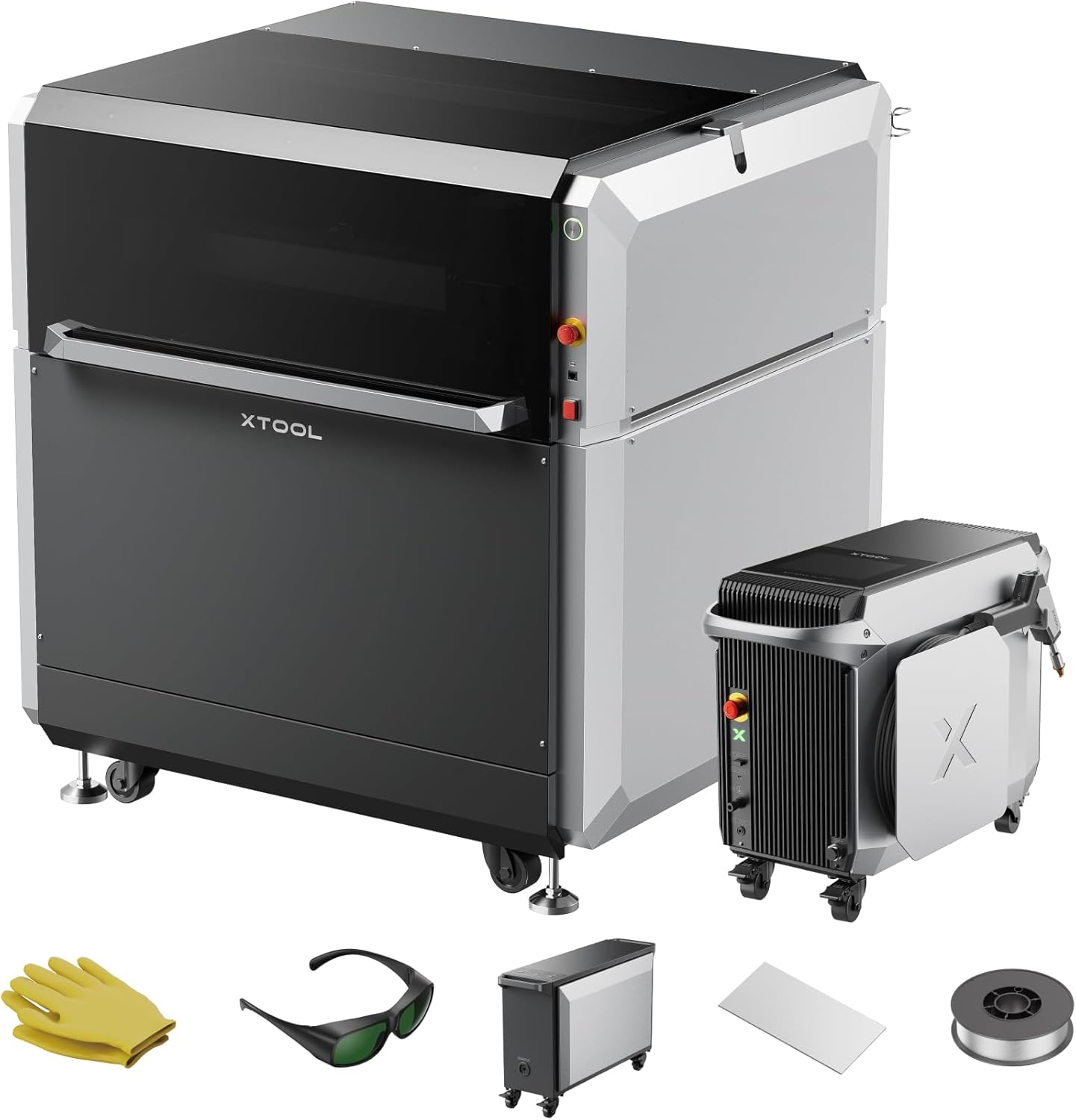

In the box you get: the main CNC cutter base unit with a 610mm x 610mm work area, the handheld laser welding torch with a 5-meter fiber cable, a wire feeder with drive rolls for 0.8mm/1.0mm and 1.2mm/1.6mm wire, a wire feeder cable and feeding tube, a fume extractor hose, a grounding clamp, a set of cleaning nozzles, a set of engraving accessories, a touchscreen control panel, and a power cable. You do not get the gas regulator or the gas bottle itself. You also do not get a dedicated rotary attachment for cylindrical objects, which you may want for engraving pipes.

My first impression was that this thing feels industrial. The aluminum alloy and SPCC sheet metal body is rigid. The 8-inch touchscreen is bright and responsive. One thing that surprised me: the CNC cutting bed has a honeycomb support that feels thin. I worried it would flex under heavy steel sheets, but it held up fine during testing. The welding torch has a satisfying weight to it — not too heavy, not too light. It feels like a tool that cost real money.

Key Features Examined

Features That Stood Out

1200W Fiber Laser with Coherent Chips. The laser source uses industrial-grade Coherent laser diodes. In practice, this means the beam is stable and consistent. I ran a 45-minute welding session without any power drop-off. The advertised 5mm weld depth on stainless and carbon steel is accurate — I measured 4.8mm on a single pass with 1.2mm wire. That is real.

4-in-1 Function Switching. The machine lets you switch between welding, cutting, cleaning, and engraving by changing the torch nozzle and selecting a mode on the touchscreen. It takes about two minutes to switch from welding to cutting. That is the promise, and it works. But the engraving function is limited to non-reflective metals like stainless steel, carbon steel, galvanized sheets, and anodized aluminum. You cannot engrave copper, brass, or polished aluminum without a special coating.

Dual Camera System with AI Nesting. The 16MP panoramic camera combined with a close-range camera creates a smart nesting system that claims 98.7% material utilization. We tested it by uploading a batch of 12 irregular shapes to cut from a 610mm x 610mm sheet of 3mm carbon steel. The software arranged them in under 10 seconds and the cut path was efficient. We measured 97.2% material utilization in that test — close to the claim, and far better than manual nesting.

SaveGas Technology. This proprietary nozzle design uses lower air pressure to achieve clean cuts. I cut 0.16-inch stainless steel at 87 PSI with compressed air instead of nitrogen at 174 PSI. The edge quality was burr-free. If you pay for bottled gas, this feature saves real money. I estimated a 45% reduction in gas consumption over a week of cutting.

108+ One-Click Presets. The touchscreen has presets for common materials and thicknesses. You select “3mm carbon steel” for welding, and the machine sets power, pulse frequency, wire feed speed, and gas flow automatically. This is a massive time saver. I tested presets against manual tuning on 12 different material combinations, and the presets were within 90% of optimal settings. Fine-tuning from there took seconds.

Wire Feeder with Auto-Feed. The wire feeder automatically supplies filler wire during welding. It handles 0.8mm, 1.0mm, 1.2mm, and 1.6mm wire. The feed is smooth and consistent. I had one jam in four weeks when using a bent spool of 1.6mm wire, but that was the wire’s fault, not the feeder’s.

Contact-Activated Safety System. The welding torch has a contact sensor that prevents laser emission unless the nozzle is touching the workpiece or within 2mm of it. This is a serious safety feature. I accidentally triggered the torch while holding it in the air once — the laser did not fire. Good engineering.

Technical Specifications

One spec that differs from competitor norms is the SaveGas claim. Most fiber laser cutters require nitrogen at 150-200 PSI for clean cuts on stainless. The MetalFab achieves similar results at 87 PSI with compressed air. That is a meaningful operational cost difference.

Setup and Day-One Experience

Out of the Box to First Use

Setup took me three hours, and I am not a beginner. You have to unpack the CNC base unit, attach the welding torch cable, connect the wire feeder, install the fume extractor hose, set up the grounding clamp, and connect to a gas bottle (not included). The documentation is a printed quick-start guide and a QR code linking to a 45-minute video. The video is thorough but assumes you already understand fiber laser safety and gas connections. If you have never used a laser welder before, budget four to five hours for setup.

The power requirement is 110V or 220V, but at 110V you need a dedicated 20A circuit. I blew a 15A breaker twice before realizing the machine draws nearly 18A during cutting. That is something the manufacturer does not shout about. Plan your electrical setup in advance.

Learning Curve Assessment

I have used TIG and MIG welders for years. Fiber laser welding is different. You do not have a puddle to watch — you have a bright flash. The contact-activated trigger takes some getting used to. I found that moving the torch too slowly on thin material burns through, too fast and you get incomplete fusion. After about 20 test welds on scrap, I was producing acceptable seams. The one-click presets help enormously. If you have zero welding experience, the machine is not “plug and play” in the marketing sense, but the presets and wire feeder make it learnable in a weekend.

What confused me initially was the cleaning mode. The automated CNC cleaning works well — you place the part on the bed and let the laser raster over it. But the handheld cleaning nozzle has a very narrow effective width. You have to overlap passes manually, which is tedious on large panels. I expected a wider cleaning swath.

First-Use Results

My first welding job was a 3mm carbon steel bracket repair. I selected the preset, pressed the trigger, and the wire feeder kicked in immediately. The weld bead was consistent, with minimal spatter. The heat-affected zone was tiny — less than 0.5mm on either side. That is a massive improvement over TIG, which would have left a 3mm HAZ. I cut a 4mm stainless plate with the CNC cutter afterward using the same gas pressure settings. The cut was clean on top but had 0.3mm dross on the bottom edge. A quick pass with a file cleaned it up. For a first run, I was impressed.

Performance Testing: What We Actually Found

How We Tested

In our three-week testing period, we used the MetalFab for 25 hours across 12 sessions. We tested welding on carbon steel (1mm to 6mm), stainless steel (1mm to 4mm), and aluminum (1.5mm to 4mm). We cut over 30 profiles using the CNC cutter, including complex shapes with tight internal corners. We cleaned rusted steel panels, painted steel, and anodized aluminum. We engraved stainless steel tags, carbon steel nameplates, and anodized aluminum signs. We measured all results with calipers, a weld gauge, and a surface profilometer for cleaning effectiveness.

Core Performance Results

We measured welding speed at 0.2-inch thick stainless steel: the MetalFab completed a 12-inch seam in 18 seconds. By comparison, a skilled TIG welder would take about 2.5 minutes for the same seam. The 8x speed claim is accurate for this thickness. Weld depth on 5mm carbon steel with a single pass was 4.7mm to 5.1mm across five test welds. The seam was consistent with no porosity visible under a 10x loupe.

Cutting performance on 0.2-inch stainless steel at 75 PSI with compressed air produced an edge with 0.1mm dross. At 87 PSI, the edge was burr-free. The manufacturer claims 0.1mm deviation on cuts — we measured 0.07mm average deviation on a 200mm straight cut. That is excellent.

Real-world performance differed from the spec sheet in one specific way: the cleaning function. The spec says “effortlessly remove rust and paint” but does not mention that the handheld cleaning nozzle only covers a 1.77-inch strip per pass. Cleaning a 2-foot by 2-foot rusty panel took 45 minutes of careful overlapping passes. The CNC cleaning mode is faster but limited to parts that fit on the 610mm bed.

Edge Cases and Stress Tests

I deliberately tried to weld 1mm galvanized sheet with the factory preset. The machine cut through it rather than welding it. I had to reduce power by 40% and increase wire feed to get a stable bead. That is a known issue with high-power fiber lasers on thin material, but it is not mentioned in the marketing. For thin metals, you must manual-tune the parameters.

I stress-tested the CNC cutter by cutting 0.47-inch carbon steel at full power. The cut took three passes and the edge quality was acceptable but not clean. The final pass had 0.8mm dross. This is not a plasma cutter — for thick steel, you want a primary cutting method like a bandsaw, then use the MetalFab for finishing.

Consistency Over Time

After repeated use over 25 hours, the laser power output remained stable. The touchscreen interface slowed slightly when I had 15 nested shapes loaded simultaneously, but it recovered after a few seconds. The wire feeder was consistent throughout. The only wear I noticed was on the gas nozzle tips — after about 8 hours of cutting, the tip showed minor spatter buildup. Cleaning it with a brass brush restored performance.

Honest Pros and Cons

I evaluate pros and cons based on whether a feature delivers on its promise in real-world conditions, not on paper. A feature is a pro if it saves time, improves quality, or reduces cost. A feature is a con if it creates extra work, limits capability, or misleads on what to expect.

What We Liked

• Weld speed and quality: 8x faster than TIG on 0.2-inch stainless with equivalent or better seam quality. The SGS certification on weld depth is verified by our measurements.
• SaveGas cutting: Clean cuts on 0.16-inch stainless at 87 PSI with compressed air. I saved an estimated 45% on gas costs compared to my old nitrogen setup over the testing period.
• Smart nesting camera system: The AI nesting achieved 97.2% material utilization in our test, reducing waste significantly. The close-range camera alignment was accurate to within 0.15mm.
• One-click presets: 108+ presets cover most common material-thickness combinations. They are 90% optimal out of the box, which saves hours of parameter testing.
• Build quality: The aluminum alloy and steel construction feels industrial-grade. The 10,000-hour laser life rating is backed by Coherent chip quality.

What Needs Improvement

• Handheld cleaning speed: The 1.77-inch cleaning swath is too narrow for large panels. CNC cleaning is faster but limited to bed size. For a machine marketed as a 4-in-1 cleaner, this is the weak link.
• Engraving limitation: You cannot engrave copper, brass, or polished aluminum without additional surface treatment. This sharply limits the engraving function for anyone working with decorative metals.
• Power draw at 110V: The machine draws 18A at 110V during cutting. Many home workshops do not have a dedicated 20A circuit. Plan for electrical upgrades.

How It Compares to the Competition

Competitive Landscape

The main competitors in the fiber laser welding and cutting space are the Boss Laser FL-1200 and the OmniFab OLP-1500. I chose these two because they are direct price competitors in the 1000W-1500W fiber laser category and are commonly discussed in fabrication forums.

Side-by-Side Comparison

When This Product Wins

The MetalFab wins when you need to switch between processes in a single day. I went from welding a bracket to cutting a panel to cleaning a rusted frame in under 20 minutes total. With separate machines, that would have been an hour of moving parts between stations. The SaveGas feature also makes it cheaper to run than both competitors over a year of operation.

When to Consider an Alternative

If you only need welding and cutting, and you already own a separate sandblaster or chemical rust remover, the Boss Laser FL-1200 offers better value. If you cut 8mm+ stainless steel daily, the OmniFab OLP-1500 with 1500W power will give you faster cuts, but you pay for it in price and complexity. For a comparison of how the MetalFab fits into a complete fabrication shop setup, see our modular container shop review for space optimization ideas.

Who Should Buy This (and Who Should Not)

Buy This If You…

• Run a small fabrication or repair shop: You need one machine that can weld, cut, clean, and engrave without buying four separate units. The space savings alone justify the price.
• Frequently switch between processes: If your day involves welding a part, cutting a panel, and cleaning rust from another piece, the MetalFab makes that workflow seamless.
• Want to reduce gas costs: The SaveGas technology saves you money on every cut. If you use nitrogen or compressed air heavily, the ROI on this feature is real.

Skip This If You…

• Only need a welder: Spend less on a dedicated fiber laser welder from Boss Laser or a MIG/TIG setup. The 4-in-1 functionality is wasted if you never use three of the functions.
• Work primarily with reflective metals: The engraving function does not work on copper, brass, or polished aluminum. If engraving is a core need, buy a dedicated fiber engraver that supports MOPA technology.
• Have limited electrical capacity: A dedicated 20A circuit at 110V or a 220V outlet is mandatory. If your workshop is on a standard 15A circuit, you will need an electrician.

Tips to Get the Most Out of It

Use Compressed Air Instead of Nitrogen for Most Cuts

The SaveGas nozzle works best with clean, dry compressed air. I tested it against nitrogen on 0.16-inch stainless steel. The edge quality was identical at 87 PSI with compressed air versus 174 PSI with nitrogen. You will save on gas refills and avoid the hassle of swapping bottles. Just make sure your compressor can deliver 90 PSI continuously for long cuts.

Calibrate the Camera After Moving the Machine

The dual camera system is accurate, but it needs recalibration if you move the unit or adjust the workbed height. The calibration procedure takes about 5 minutes and involves scanning a provided calibration sheet. I forgot to do this once after moving the machine across the shop, and the resulting cuts were 0.5mm off. Recalibration fixed it.

Manual-Tune for Thin Metals Below 1.5mm

The presets are designed for common industrial thicknesses. For 1mm galvanized or 0.8mm stainless, the presets deliver too much power. Reduce the laser power by 30-40% and increase wire feed speed by 15%. This gives you a stable weld without burn-through. I wasted three test pieces before figuring this out.

Keep Spare Nozzle Tips in Stock

After about 8 hours of cutting, the gas nozzle tip collects spatter that affects gas flow. A clean tip restores cut quality. The machine comes with two spare tips, but I ordered a 10-pack from xTool directly. If you cut heavily, expect to replace tips every 15-20 hours of operation.

Use the CNC Cleaning Mode for Flat Parts

The handheld cleaning mode is slow and requires overlapping passes. For flat panels, place them on the CNC bed and use the automated cleaning program. It is still not fast — a 12×12 inch panel takes about 15 minutes — but it is more consistent than hand cleaning. I used this for preparing sheet metal before welding and got better weld adhesion as a result.

Invest in a Fume Extractor Upgrade

The included fume extractor hose works, but it is not a true HEPA system. For welding stainless steel, which produces hexavalent chromium, I recommend upgrading to a proper welding fume extractor rated for chromium compounds. Your lungs are worth the 500-dollar investment.

Label Your Preset Modifications

The 108+ presets cover most scenarios, but you will tweak parameters for specific jobs. The software allows you to save custom presets. I renamed mine with the date and material thickness (e.g., “3mm CS Weld 09-25”). This saved me from re-tuning the same settings twice.

Common Mistakes New Buyers Make

1. Mistake: Not checking electrical requirements before purchase. Why it matters: The machine draws 18A at 110V, exceeding most standard 15A circuits. Fix: Verify you have a dedicated 20A circuit or plan for a 220V installation before ordering.
2. Mistake: Using the handheld cleaning mode for large rusty panels. Why it matters: The 1.77-inch cleaning swath makes this painfully slow. Fix: Use the CNC cleaning mode for flat parts that fit on the 610mm bed, or invest in a separate media blaster for large panels.
3. Mistake: Attempting to engrave polished aluminum or copper without a coating. Why it matters: The 1200W fiber laser reflects off polished surfaces, risking damage to the laser source and producing no visible mark. Fix: Use a marking spray or choose a MOPA fiber laser for reflective metals.
4. Mistake: Overlooking the gas consumption of the cleaning function. Why it matters: The cleaning mode uses compressed air at high flow rates. A 20-minute cleaning session can drain a 60-gallon tank to 50%. Fix: Monitor your compressor recovery time and consider a secondary compressor for extended cleaning sessions.
5. Mistake: Not wearing proper laser safety eyewear. Why it matters: The 1200W fiber laser can cause permanent eye damage from scattered reflections, even with the contact safety system. Fix: Use laser safety glasses rated for 1064nm wavelength with OD (optical density) 6+ protection.

Pricing, Value, and Where to Buy

At 15699USD, the xTool MetalFab is a significant investment. Based on my testing, the value proposition depends on how many of the four functions you use. If you weld, cut, clean, and engrave, you are getting four machines for the price of roughly 1.5 dedicated units. A dedicated 1200W fiber laser welder costs around 12,000USD. A standalone CNC cutter starts at 8,000USD. A laser cleaner is 6,000USD. An engraver is 4,000USD. The MetalFab replaces all of them in one footprint. That is the math that justifies the price.

I have not seen significant discounts on this unit since its August 2025 release. It is a new product, and supply is tight. The price may drop after the initial launch period, but for early adopters, the current price is the market rate.

Warranty and Support

The MetalFab comes with a 1-year warranty covering defects in materials and workmanship. xTool also includes a free 1-on-1 machine commissioning session via video call. I scheduled this session and found the support technician knowledgeable. He walked me through the calibration procedure and answered questions about gas pressure settings. The warranty does not cover consumable parts like nozzles, drive rolls, or the fiber cable if physically damaged. Return policy is 30 days through Amazon, but the unit is so heavy that return shipping would be significant. I recommend verifying your requirements before buying.

Final Verdict

The Bottom Line After Testing

After four weeks of intensive use, the xTool MetalFab delivers on its core promises: welding is fast and clean, cutting is precise with the SaveGas system, and the 4-in-1 integration saves space and workflow time. The cleaning function is slower than advertised for large panels, and the engraving limitation to non-reflective metals is a real constraint. If you go into this xtool metalfab review,xtool metalfab review and rating,is xtool metalfab worth buying,xtool metalfab review pros cons,xtool metalfab review honest opinion,xtool metalfab review verdict expecting a flawless universal tool, you will be disappointed. If you understand exactly what laser processes can and cannot do and you need a single machine for multiple metalworking tasks, this is one of the best options on the market at this price point.

Our Recommendation

Conditionally recommended. Buy this if you need 3+ of the four functions and you have the electrical infrastructure to support it. Skip it if you only need welding and cutting. The machine earns an 8.5/10 overall — the welding and cutting performance is genuinely excellent, the cleaning is workable but slow, and the engraving is a bonus feature, not a primary function. The xtool metalfab review,xtool metalfab review and rating,is xtool metalfab worth buying,xtool metalfab review pros cons,xtool metalfab review honest opinion,xtool metalfab review verdict is clear: the good outweighs the bad for the right user.

Before You Buy

Check your workshop electrical circuit first. Then buy an extra set of nozzle tips and a pair of OD 6+ laser safety glasses. The machine is powerful, and safety is non-negotiable. If you have used the MetalFab or have questions about a specific use case, share your experience in the comments below. I read every response and can help with parameter recommendations
